A analysis workforce from Kumamoto College has efficiently visualized how microscopic buildings inside one in all these crystals react to electrical fields in actual time, a primary for the world, in response to a research revealed in Utilized Physics Letters. This research gives perception into the dynamics of nanostructure in supplies utilized in ultrasound probes.

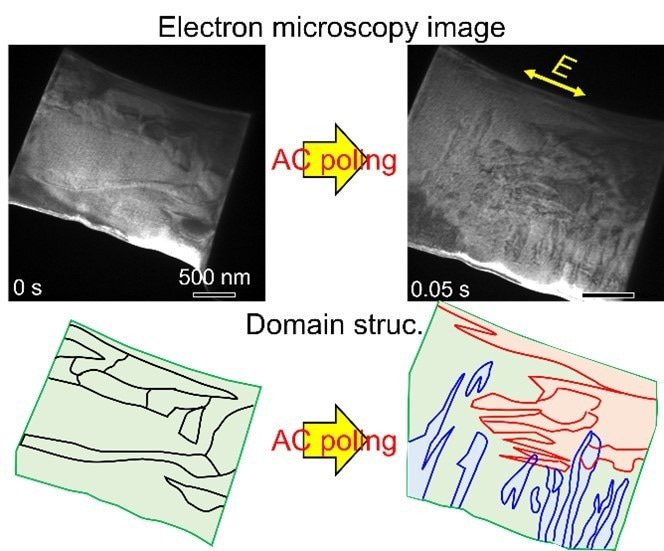

Change of area construction by AC poling. A transmission electron microscopy (TEM) picture (prime left) and the corresponding area construction (backside left) earlier than making use of an AC electrical area. The highest proper and backside proper are TEM photographs, and the corresponding area construction after making use of an AC electrical area for 0.05 seconds. Within the backside panels, area boundary is indicated by black and coloured traces. Pink and blue hatches in the precise backside panel point out newly generated and laterally shrunk domains, respectively. Path of the electrical fields is proven within the prime proper panel. Picture Credit score: Kumamoto College
Some of the used diagnostic strategies in up to date drugs is ultrasound imaging. A category of supplies known as piezoelectric single crystals, which have the power to rework electrical alerts into mechanical vibrations and vice versa, is answerable for its non-invasive magic.
Below the route of Professor Yukio Sato of the Analysis and Training Institute for Semiconductors and Informatics (REISI), the group targeting PMN-PT, a crystal that’s valued for its outstanding piezoelectric efficiency and is a strong resolution of lead titanate and magnesium niobate.
Making use of alternating present (AC) electrical fields, or AC poling, has been proven to enhance these supplies’ efficiency. Nevertheless, the exact processes underlying this enhancement and the way extreme use can really impair efficiency have been but unknown.
Utilizing a selected in situ electron microscopy approach created at Kumamoto College, the workforce might see microscopic area formations, often known as ferroelectric nanodomains, as they reacted to AC electrical fields to conduct their investigation.
They noticed a outstanding phenomenon: the area construction was drastically altered by a single cycle of an AC electrical area at a energy of 12 kV/cm and 20 Hz. Some area partitions grew and merged over time on account of shorter AC remedies, which might have improved the fabric’s qualities. Nevertheless, long-term remedies resulted within the growth of vertically aligned microdomain bands, that are in line with over-poling and will impair efficiency.
That is the primary time we’ve been capable of watch these nanoscale domains react in actual time. Understanding these adjustments is crucial for refining the poling course of and growing extra environment friendly and longer-lasting medical imaging gadgets.
Yukio Sato, Professor, Analysis and Training Institute for Semiconductors and Informatics
Journal Reference:
Li, N.-H., et al. (2025) Response of ferroelectric nanodomain to alternative-current electrical fields in morphotropic-phase boundary Pb(Mg1/3Nb2/3)O3−PbTiO3. Utilized Physics Letters. doi.org/10.1063/5.0232904
