Marine scientists have lengthy marveled at how animals like fish and seals swim so effectively regardless of having completely different shapes. Their our bodies are optimized for environment friendly, hydrodynamic aquatic navigation to allow them to exert minimal vitality when touring lengthy distances.
Autonomous autos can drift via the ocean in an identical means, amassing knowledge about huge underwater environments. Nonetheless, the shapes of those gliding machines are much less various than what we discover in marine life — go-to designs typically resemble tubes or torpedoes, since they’re pretty hydrodynamic as nicely. Plus, testing new builds requires a number of real-world trial-and-error.
Researchers from MIT’s Pc Science and Synthetic Intelligence Laboratory (CSAIL) and the College of Wisconsin at Madison suggest that AI may assist us discover uncharted glider designs extra conveniently. Their technique makes use of machine studying to check completely different 3D designs in a physics simulator, then molds them into extra hydrodynamic shapes. The ensuing mannequin will be fabricated by way of a 3D printer utilizing considerably much less vitality than hand-made ones.
The MIT scientists say that this design pipeline may create new, extra environment friendly machines that assist oceanographers measure water temperature and salt ranges, collect extra detailed insights about currents, and monitor the impacts of local weather change. The crew demonstrated this potential by producing two gliders roughly the dimensions of a boogie board: a two-winged machine resembling an airplane, and a novel, four-winged object resembling a flat fish with 4 fins.
Peter Yichen Chen, MIT CSAIL postdoc and co-lead researcher on the undertaking, notes that these designs are only a few of the novel shapes his crew’s strategy can generate. “We’ve developed a semi-automated course of that may assist us take a look at unconventional designs that may be very taxing for people to design,” he says. “This degree of form range hasn’t been explored beforehand, so most of those designs haven’t been examined in the actual world.”

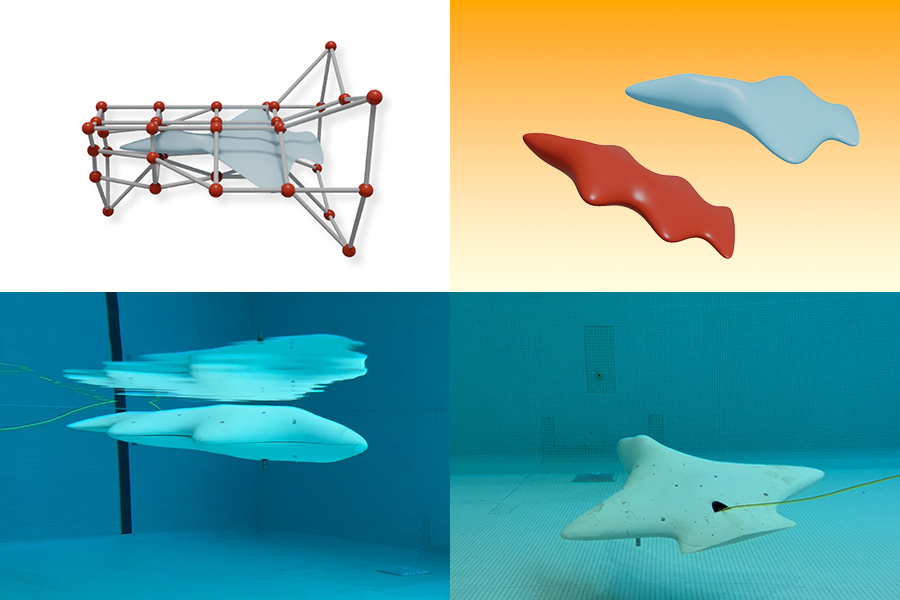

However how did AI provide you with these concepts within the first place? First, the researchers discovered 3D fashions of over 20 typical sea exploration shapes, equivalent to submarines, whales, manta rays, and sharks. Then, they enclosed these fashions in “deformation cages” that map out completely different articulation factors that the researchers pulled round to create new shapes.
The CSAIL-led crew constructed a dataset of typical and deformed shapes earlier than simulating how they might carry out at completely different “angles-of-attack” — the path a vessel will tilt because it glides via the water. For instance, a swimmer could need to dive at a -30 diploma angle to retrieve an merchandise from a pool.
These various shapes and angles of assault had been then used as inputs for a neural community that primarily anticipates how effectively a glider form will carry out at explicit angles and optimizes it as wanted.
Giving gliding robots a elevate
The crew’s neural community simulates how a specific glider would react to underwater physics, aiming to seize the way it strikes ahead and the pressure that drags in opposition to it. The purpose: discover one of the best lift-to-drag ratio, representing how a lot the glider is being held up in comparison with how a lot it’s being held again. The upper the ratio, the extra effectively the automobile travels; the decrease it’s, the extra the glider will decelerate throughout its voyage.
Raise-to-drag ratios are key for flying planes: At takeoff, you need to maximize elevate to make sure it could actually glide nicely in opposition to wind currents, and when touchdown, you want ample pressure to pull it to a full cease.
Niklas Hagemann, an MIT graduate scholar in structure and CSAIL affiliate, notes that this ratio is simply as helpful if you would like an identical gliding movement within the ocean.
“Our pipeline modifies glider shapes to seek out one of the best lift-to-drag ratio, optimizing its efficiency underwater,” says Hagemann, who can also be a co-lead creator on a paper that was introduced on the Worldwide Convention on Robotics and Automation in June. “You possibly can then export the top-performing designs to allow them to be 3D-printed.”
Going for a fast glide
Whereas their AI pipeline appeared real looking, the researchers wanted to make sure its predictions about glider efficiency had been correct by experimenting in additional lifelike environments.
They first fabricated their two-wing design as a scaled-down automobile resembling a paper airplane. This glider was taken to MIT’s Wright Brothers Wind Tunnel, an indoor area with followers that simulate wind stream. Positioned at completely different angles, the glider’s predicted lift-to-drag ratio was solely about 5 % larger on common than those recorded within the wind experiments — a small distinction between simulation and actuality.
A digital analysis involving a visible, extra advanced physics simulator additionally supported the notion that the AI pipeline made pretty correct predictions about how the gliders would transfer. It visualized how these machines would descend in 3D.
To really consider these gliders in the actual world, although, the crew wanted to see how their units would fare underwater. They printed two designs that carried out one of the best at particular points-of-attack for this take a look at: a jet-like gadget at 9 levels and the four-wing automobile at 30 levels.
Each shapes had been fabricated in a 3D printer as hole shells with small holes that flood when absolutely submerged. This light-weight design makes the automobile simpler to deal with outdoors of the water and requires much less materials to be fabricated. The researchers positioned a tube-like gadget inside these shell coverings, which housed a variety of {hardware}, together with a pump to vary the glider’s buoyancy, a mass shifter (a tool that controls the machine’s angle-of-attack), and digital elements.
Every design outperformed a hand-crafted torpedo-shaped glider by transferring extra effectively throughout a pool. With larger lift-to-drag ratios than their counterpart, each AI-driven machines exerted much less vitality, much like the easy methods marine animals navigate the oceans.
As a lot because the undertaking is an encouraging step ahead for glider design, the researchers want to slender the hole between simulation and real-world efficiency. They’re additionally hoping to develop machines that may react to sudden adjustments in currents, making the gliders extra adaptable to seas and oceans.
Chen provides that the crew is seeking to discover new kinds of shapes, significantly thinner glider designs. They intend to make their framework sooner, maybe bolstering it with new options that allow extra customization, maneuverability, and even the creation of miniature autos.
Chen and Hagemann co-led analysis on this undertaking with OpenAI researcher Pingchuan Ma SM ’23, PhD ’25. They authored the paper with Wei Wang, a College of Wisconsin at Madison assistant professor and up to date CSAIL postdoc; John Romanishin ’12, SM ’18, PhD ’23; and two MIT professors and CSAIL members: lab director Daniela Rus and senior creator Wojciech Matusik. Their work was supported, partially, by a Protection Superior Analysis Tasks Company (DARPA) grant and the MIT-GIST Program.
