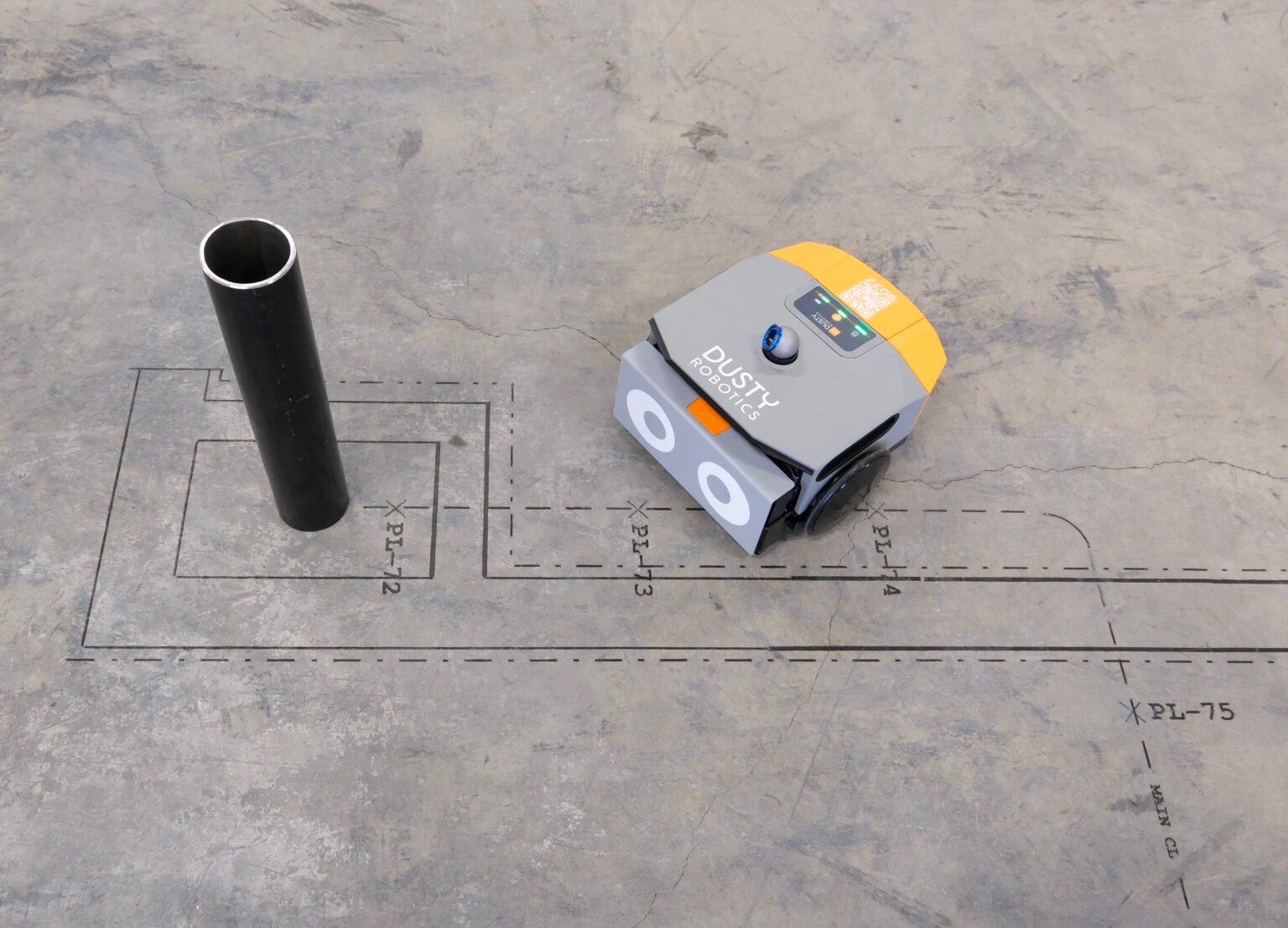

Efficiency Movement Units’ N-series movement controller-drives assist the Dusty AMR keep away from obstacles, ledges, and different risks. | Supply: Dusty Robotics
The development business is below stress. Labor shortages, rising materials prices, and demand for velocity and precision are pushing builders to hunt automated options that enhance effectivity, security, and sustainability. Dusty Robotics hopes to make use of its know-how to alter this.
Typically, plans are marked in bodily areas utilizing old school means: Relying on the location, personnel may use a whole station (a surveying instrument integrating a number of measurement instruments) or maybe simply tape measures and chalk traces to mark the place issues go. The method largely unchanged from these used centuries in the past.
Big stacks of blueprint exhausting copies detailing every flooring and system are slowly yielding to digital communications, however info remains to be manually communicated onsite, defined Mike Thompson, principal engineer at Dusty Robotics. So too usually, a constructing’s 3D mannequin isn’t what will get constructed. As varied trades lay out their plans, errors and outdated info usually result in incorrect layouts, rework, and delays.
Dusty Robotics designs the FieldPrinter 2
The ION/CME N-series motion-control drive imparts the Dusty design with the management wanted for exact automated operation. | Supply: Efficiency Movement Units
Mountain View, Calif.-based startup Dusty Robotics has designed an autonomous cell robotic (AMR) referred to as the FieldPrinter 2 to independently map and mark 3D constructing designs onto 2D development flooring with 0.0625-in. accuracy. With it, development groups now not need to continuously verify their laptops, iPads, and paper plans to know what should be constructed and the place.
Core to the AMR’s operate are two off-the-shelf movement management parts from Efficiency Movement Units (PMD). The ION/CME N-series drives present management and energy for the AMR’s two entrance wheels, and extra particularly, the 2 brushless DC electrical motors (BLDCs) driving the wheels. The AMR’s rear wheel has no lively drive.
The controller drives place the robotic, together with a set of onboard sensors that present exact location info, together with trackers, encoders, and inertial measurement unit gyroscopes.
“We would like steady movement between all of the objects that we print,” stated Ryan Dimick, controls engineer at Dusty Robotics. The system should enable for fixed profile modifications because the robotic switches between navigating and printing.”
In truth, the brand new FieldPrinter 2 AMR improves on a earlier iteration with the assistance of the PMD controller-drives. The primary iteration’s use of one other vendor’s movement controllers created challenges for the startup‘s builders, together with an incapacity to know and rectify errors with out workarounds. The brand new controller-drive answer addresses these points and suits into the prevailing platform.
Extra particularly, the PCB-mountable single-axis controller imparts high-performance movement management, community connectivity, and amplification for an all-in-one drive with a built-in processor. So, the robotic can obtain and run code. Plus, the controller-drives give Dusty Robotics visibility and customizability.
“Once we bumped into a difficulty, it was at all times one thing we might repair,” Dimick stated. “We overcame any latencies we had prior to now and actually set our personal timing traits for the motors and motor management.”
For instance, Dusty needed to have the ability to modify the management loop and field-oriented management loop parameters, he added.
“(Dimick) is consistently pulling knowledge into spreadsheets, graphing it, and all of the inputs and outputs to the motor controller — and understanding what small tweaks we’d like,” Thompson defined. “That capability to deliver graphs into alignment together with his expectations — that was an enormous problem earlier than.”
Dimick added, “We’re engaged on a millisecond-level time scale. Getting info in a short time is necessary for all of the tuning and high-level controls, and we weren’t in a position to attain that previous to PMD.”
PMD’s ION/CME N-series movement management drive is instrumental to the robotic’s place accuracy. PMD’s N-series drives additionally give the engineers entry to inner management parameters to customise and troubleshoot the design. | Supply: Dusty Robotics
PMD helps Dusty remedy edge circumstances
Dusty Robotics carefully collaborated with the controller-drive provider to resolve challenges. “Anytime I used to be integrating the controller into the product and had questions, they had been fast to leap on a name, and so they even launched a customized debug model for me to briefly use for diagnosing a difficulty,” stated Dimick.
This collaboration additionally knowledgeable the AMR producer’s industrial-communication selection.
The controller drive helps communication by way of Ethernet, CAN, RS-232, RS-485, and serial peripheral interface. Dusty needed sure communications coming in a barely later model of the controller-drive.
“So, we waited, and I believe we had been one of many first to actually use it,” he recalled. “Then we helped (the provider) debug the firmware, and so they shortly returned new variations for us to make use of.”
A black diagram of the PMD N-Sequence ION. | Supply: Efficiency Movement Units
The Dusty FieldPrinter 2 has a laser tracker that constantly studies AMR place — however usually the tracker doesn’t have a view of the robotic, so operation is blind. However the controller-drive (together with the robotic’s sensors) retains the AMR on monitor.
“When the robotic is printing inside a blind spot, not seen to the tracker, it’s counting on the inertial measurement unit and encoders which are coming via the controller. It’s counting on all the opposite sensors for 5, 10, 15 seconds of steady printing,” Thompson defined. “Then, when it comes out of the blind spot, it tells the tracker precisely the place it’s. We have to give that tracker the accuracy so it may well in a short time and exactly purchase the sign.”
Right here, sub-millisecond timing precision helps the AMR deal with blind spots so widespread at cluttered jobsites. “That info and easy predictable movement lets the AMR precisely estimate its location and proceed printing with out line-of-sight to the laser tracker,” stated Dimick. This blind-spot printing is the largest enchancment of the brand new AMR model.
The controller-drive may apply an digital brake to the AMR’s motors. A little bit of Dusty’s personal software program, operating on one of many controller’s chips, serves as a watchdog. If it loses communication to the robotic, it powers down the motors.
As the corporate title implies, Dusty Robotics’ system should function in soiled environments and in all types of climate — within the Arizona solar, in addition to the 14th flooring of a Chicago constructing below development when it’s -20° F — and with unknown obstacles and spotty Web connectivity.
In contrast to competing options that go away delicate electronics uncovered, PMD stated the controller-drive used within the FieldPrinter 2 comes commonplace with an enclosed package deal to guard inner parts. Future iterations of the robotic might see greater ranges of integration.
“PMD supplies a pathway for us,” Thompson stated. “They supply the controllers themselves and might open their controllers and provides us entry to the unbiased components to allow us to create a extremely built-in answer.”
“It’s one thing that we haven’t actually pursued however lets us protect the funding that the engineers have made … and nonetheless make the system sooner and lighter than it’s at this time,” he added.
