For over 50 years now, egged on by the seeming inevitability of Moore’s Regulation, engineers have managed to double the variety of transistors they’ll pack into the identical space each two years. However whereas the {industry} was chasing logic density, an undesirable facet impact turned extra distinguished: warmth.
In a system-on-chip (SoC) like right now’s
CPUs and GPUs, temperature impacts efficiency, energy consumption, and vitality effectivity. Over time, extreme warmth can gradual the propagation of essential indicators in a processor and result in a everlasting degradation of a chip’s efficiency. It additionally causes transistors to leak extra present and because of this waste energy. In flip, the elevated energy consumption cripples the vitality effectivity of the chip, as increasingly more vitality is required to carry out the very same duties.
The foundation of the issue lies with the tip of one other legislation:
Dennard scaling. This legislation states that because the linear dimensions of transistors shrink, voltage ought to lower such that the overall energy consumption for a given space stays fixed. Dennard scaling successfully ended within the mid-2000s on the level the place any additional reductions in voltage weren’t possible with out compromising the general performance of transistors. Consequently, whereas the density of logic circuits continued to develop, energy density did as properly, producing warmth as a by-product.
As chips turn out to be more and more compact and highly effective, environment friendly warmth dissipation shall be essential to sustaining their efficiency and longevity. To make sure this effectivity, we want a software that may predict how new semiconductor know-how—processes to make transistors, interconnects, and logic cells—adjustments the best way warmth is generated and eliminated. My analysis colleagues and I at
Imec have developed simply that. Our simulation framework makes use of industry-standard and open-source digital design automation (EDA) instruments, augmented with our in-house software set, to quickly discover the interplay between semiconductor know-how and the programs constructed with it.
The outcomes up to now are inescapable: The thermal problem is rising with every new know-how node, and we’ll want new options, together with new methods of designing chips and programs, if there’s any hope that they’ll have the ability to deal with the warmth.
The Limits of Cooling
Historically, an SoC is cooled by blowing air over a warmth sink hooked up to its bundle. Some knowledge facilities have begun utilizing liquid as a substitute as a result of it might take in extra warmth than gasoline. Liquid coolants—sometimes water or a water-based combination—may match properly sufficient for the newest era of high-performance chips comparable to Nvidia’s new AI GPUs, which reportedly eat an astounding 1,000 watts. However neither followers nor liquid coolers shall be a match for the smaller-node applied sciences coming down the pipeline.

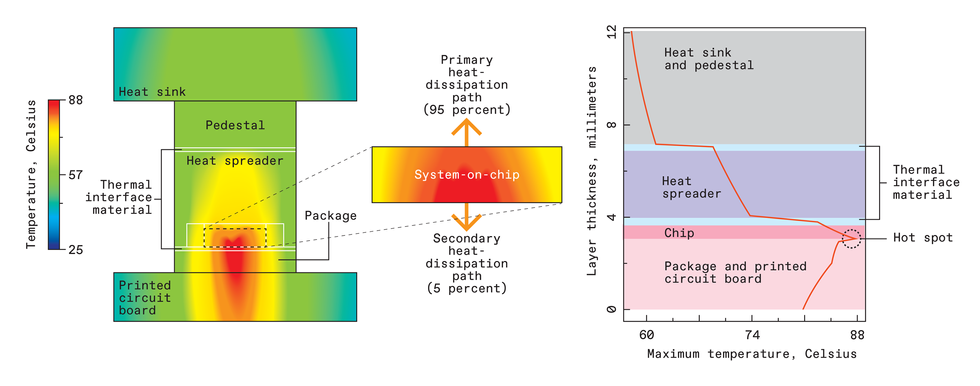

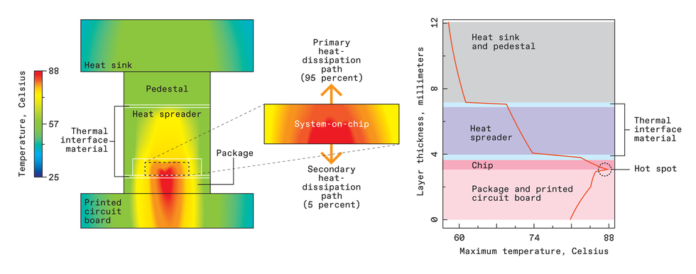

Warmth follows a posh path because it’s faraway from a chip, however 95 % of it exits via the warmth sink. Imec
Take, as an example,
nanosheet transistors and complementary field-effect transistors (CFETs). Main chip producers are already shifting to nanosheet units, which swap the fin in right now’s fin field-effect transistors for a stack of horizontal sheets of semiconductor. CFETs take that structure to the intense, vertically stacking extra sheets and dividing them into two units, thus putting two transistors in about the identical footprint as one. Consultants count on the semiconductor {industry} to introduce CFETs within the 2030s.
In our work, we checked out an upcoming model of the nanosheet known as A10 (referring to a node of 10 angstroms, or 1 nanometer) and a model of the CFET known as A5, which Imec initiatives will seem two generations after the A10. Simulations of our take a look at designs confirmed that the facility density within the A5 node is 12 to fifteen % increased than within the A10 node. This elevated density will, in flip, result in a projected temperature rise of 9 °C for a similar working voltage.
Complementary field-effect transistors will stack nanosheet transistors atop one another, growing density and temperature. To function on the similar temperature as nanosheet transistors (A10 node), CFETs (A5 node) must run at a decreased voltage. Imec
9 levels won’t appear to be a lot. However in an information middle, the place lots of of hundreds to thousands and thousands of chips are packed collectively, it might imply the distinction between secure operation and thermal runaway—that dreaded suggestions loop during which rising temperature will increase leakage energy, which will increase temperature, which will increase leakage energy, and so forth till, finally, security mechanisms should shut down the {hardware} to keep away from everlasting injury.
Researchers are pursuing superior alternate options to primary liquid and air cooling which will assist mitigate this sort of excessive warmth. Microfluidic cooling, as an example, makes use of tiny channels etched right into a chip to flow into a liquid coolant contained in the gadget. Different approaches embody jet impingement, which entails spraying a gasoline or liquid at excessive velocity onto the chip’s floor, and immersion cooling, during which your entire printed circuit board is dunked within the coolant bathtub.
However even when these newer strategies come into play, relying solely on coolers to dispense with further warmth will seemingly be impractical. That’s very true for cellular programs, that are restricted by measurement, weight, battery energy, and the necessity to not cook dinner their customers. Information facilities, in the meantime, face a special constraint: As a result of cooling is a building-wide infrastructure expense, it could value an excessive amount of and be too disruptive to replace the cooling setup each time a brand new chip arrives.
Efficiency Versus Warmth
Fortunately, cooling know-how isn’t the one option to cease chips from frying. Quite a lot of system-level options can maintain warmth in test by dynamically adapting to altering thermal circumstances.
One strategy locations thermal sensors round a chip. When the sensors detect a worrying rise in temperature, they sign a discount in working voltage and frequency—and thus energy consumption—to counteract heating. However whereas such a scheme solves thermal points, it would noticeably have an effect on the chip’s efficiency. For instance, the chip may all the time work poorly in sizzling environments, as anybody who’s ever left their smartphone within the solar can attest.
One other strategy, known as thermal sprinting, is very helpful for multicore data-center CPUs. It’s achieved by operating a core till it overheats after which shifting operations to a second core whereas the primary one cools down. This course of maximizes the efficiency of a single thread, however it might trigger delays when work should migrate between many cores for longer duties. Thermal sprinting additionally reduces a chip’s total throughput, as some portion of it is going to all the time be disabled whereas it cools.
System-level options thus require a cautious balancing act between warmth and efficiency. To use them successfully, SoC designers should have a complete understanding of how energy is distributed on a chip and the place sizzling spots happen, the place sensors must be positioned and when they need to set off a voltage or frequency discount, and the way lengthy it takes components of the chip to chill off. Even the perfect chip designers, although, will quickly want much more inventive methods of managing warmth.
Making Use of a Chip’s Bottom
A promising pursuit entails including new capabilities to the underside, or bottom, of a wafer. This technique primarily goals to enhance energy supply and computational efficiency. Nevertheless it may also assist resolve some warmth issues.
New applied sciences can scale back the voltage that must be delivered to a multicore processor in order that the chip maintains a minimal voltage whereas working at an appropriate frequency. A bottom power-delivery community does this by lowering resistance. Bottom capacitors decrease transient voltage losses. Bottom built-in voltage regulators permit completely different cores to function at completely different minimal voltages as wanted.Imec
Imec foresees a number of bottom applied sciences which will permit chips to function at decrease voltages, reducing the quantity of warmth they generate. The primary know-how on the highway map is the so-called bottom power-delivery community (BSPDN), which does exactly what it appears like: It strikes energy strains from the entrance of a chip to the again. All of the superior CMOS foundries plan to supply BSPDNs by the tip of 2026. Early demonstrations present that they reduce resistance by bringing the facility provide a lot nearer to the transistors. Much less resistance leads to much less voltage loss, which suggests the chip can run at a decreased enter voltage. And when voltage is decreased, energy density drops—and so, in flip, does temperature.
By altering the supplies inside the path of warmth elimination, bottom power-delivery know-how may make sizzling spots on chips even hotter.
Imec
After BSPDNs, producers will seemingly start including capacitors with excessive energy-storage capability to the bottom as properly. Giant voltage swings brought on by inductance within the printed circuit board and chip bundle may be notably problematic in high-performance SoCs. Bottom capacitors ought to assist with this concern as a result of their nearer proximity to the transistors permits them to soak up voltage spikes and fluctuations extra shortly. This association would subsequently allow chips to run at a fair decrease voltage—and temperature—than with BSPDNs alone.
Lastly, chipmakers will introduce bottom built-in voltage-regulator (IVR) circuits. This know-how goals to curtail a chip’s voltage necessities additional nonetheless via finer voltage tuning. An SoC for a smartphone, for instance, generally has 8 or extra compute cores, however there’s no house on the chip for every to have its personal discrete voltage regulator. As a substitute, one off-chip regulator sometimes manages the voltage of 4 cores collectively, no matter whether or not all 4 are dealing with the identical computational load. IVRs, however, would handle every core individually via a devoted circuit, thereby bettering vitality effectivity. Inserting them on the bottom would save beneficial house on the frontside.
It’s nonetheless unclear how bottom applied sciences will have an effect on warmth administration; demonstrations and simulations are wanted to chart the results. Including new know-how will typically improve energy density, and chip designers might want to take into account the thermal penalties. In putting bottom IVRs, as an example, will thermal points enhance if the IVRs are evenly distributed or if they’re concentrated in particular areas, comparable to the middle of every core and reminiscence cache?
Just lately, we confirmed that bottom energy supply could introduce new thermal issues even because it solves previous ones. The trigger is the vanishingly skinny layer of silicon that’s left when BSPDNs are created. In a frontside design, the silicon substrate may be as thick as 750 micrometers. As a result of silicon conducts warmth properly, this comparatively cumbersome layer helps management sizzling spots by spreading warmth from the transistors laterally. Including bottom applied sciences, nevertheless, requires thinning the substrate to about 1 mm to offer entry to the transistors from the again. Sandwiched between two layers of wires and insulators, this slim silicon slice can not transfer warmth successfully towards the edges. In consequence, warmth from hyperactive transistors can get trapped regionally and compelled upward towards the cooler, exacerbating sizzling spots.
Our simulation of an 80-core server SoC discovered that BSPDNs can increase hot-spot temperatures by as a lot as 14 °C. Design and know-how tweaks—comparable to growing the density of the metallic on the bottom—can enhance the state of affairs, however we’ll want extra mitigation methods to keep away from it utterly.
Making ready for “CMOS 2.0”
BSPDNs are a part of a brand new paradigm of silicon logic know-how that Imec is looking CMOS 2.0. This rising period will even see superior transistor architectures and specialised logic layers. The principle function of those applied sciences is optimizing chip efficiency and energy effectivity, however they could additionally provide thermal benefits, together with improved warmth dissipation.
In right now’s CMOS chips, a single transistor drives indicators to each close by and faraway elements, resulting in inefficiencies. However what if there have been two drive layers? One layer would deal with lengthy wires and buffer these connections with specialised transistors; the opposite would deal solely with connections underneath 10 mm. As a result of the transistors on this second layer can be optimized for brief connections, they may function at a decrease voltage, which once more would cut back energy density. How a lot, although, continues to be unsure.
Sooner or later, components of chips shall be made on their very own silicon wafers utilizing the suitable course of know-how for every. They may then be 3D stacked to type SoCs that operate higher than these constructed utilizing just one course of know-how. However engineers must rigorously take into account how warmth flows via these new 3D constructions.
Imec
What is obvious is that fixing the {industry}’s warmth drawback shall be an interdisciplinary effort. It’s unlikely that anybody know-how alone—whether or not that’s thermal-interface supplies, transistors, system-control schemes, packaging, or coolers—will repair future chips’ thermal points. We are going to want all of them. And with good simulation instruments and evaluation, we are able to start to know how a lot of every strategy to use and on what timeline. Though the thermal advantages of CMOS 2.0 applied sciences—particularly, bottom functionalization and specialised logic—look promising, we might want to affirm these early projections and research the implications rigorously. With bottom applied sciences, as an example, we might want to know exactly how they alter warmth era and dissipation—and whether or not that creates extra new issues than it solves.
Chip designers may be tempted to undertake new semiconductor applied sciences assuming that unexpected warmth points may be dealt with later in software program. That could be true, however solely to an extent. Relying too closely on software program options would have a detrimental impression on a chip’s efficiency as a result of these options are inherently imprecise. Fixing a single sizzling spot, for instance, may require lowering the efficiency of a bigger space that’s in any other case not overheating. It’ll subsequently be crucial that SoCs and the semiconductor applied sciences used to construct them are designed hand in hand.
The excellent news is that extra EDA merchandise are including options for superior thermal evaluation, together with throughout early levels of chip design. Consultants are additionally calling for a brand new technique of chip growth known as
system know-how co-optimization. STCO goals to dissolve the inflexible abstraction boundaries between programs, bodily design, and course of know-how by contemplating them holistically. Deep specialists might want to attain outdoors their consolation zone to work with specialists in different chip-engineering domains. We could not but know exactly learn how to resolve the {industry}’s mounting thermal problem, however we’re optimistic that, with the appropriate instruments and collaborations, it may be achieved.
