A grid-scale battery within the Scottish Highlands acquired an opportunity to show its mettle in March when, 11 days after it began up, a large wood-burning generator in northern England shut down unexpectedly. Out of the blue 1,877 megawatts of provide was lacking, inflicting the 50-hertz frequency of the grid’s alternating present to crash under its 49.8-Hz working restrict in simply 8 seconds.
However the brand new 200-MW battery station leapt into motion inside milliseconds, releasing further energy to assist arrest the frequency collapse and hold the grid working.
Standard fossil-fuel turbines have traditionally helped thwart these sorts of issues. With the inertia of their spinning rotors, their kinetic vitality supplies a buffer towards speedy swings in frequency and voltage. However the response within the Highlands was considered one of the world’s first examples of a grid-scale battery commissioned to do this sort of grid-stabilizing job.

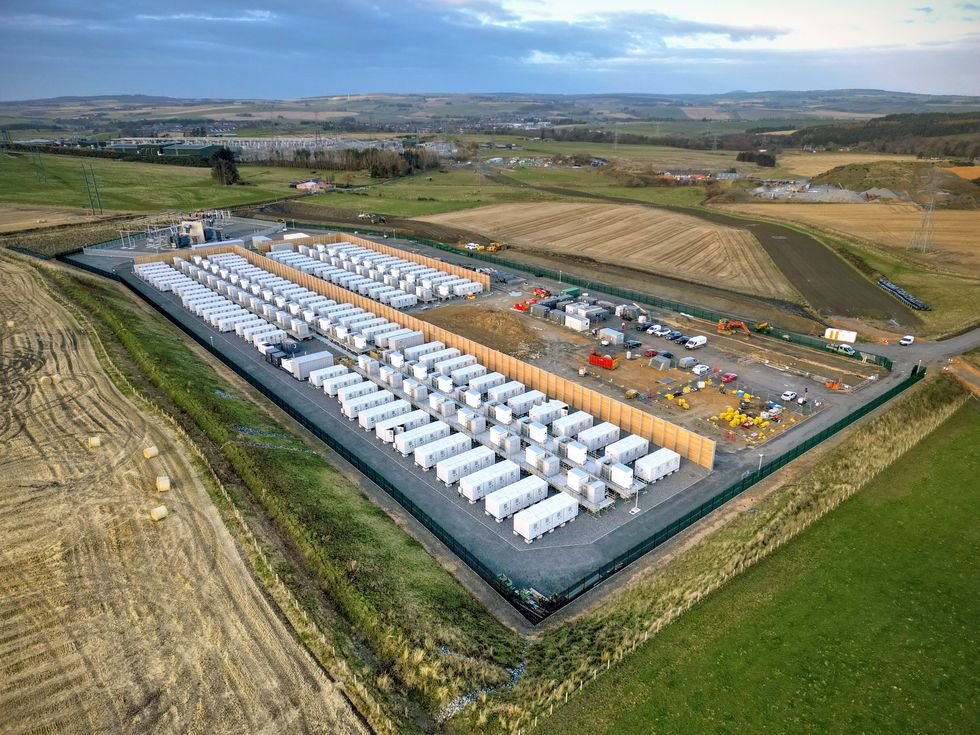

With out shifting components, the lithium battery storage web site—the most important in Europe and positioned Blackhillock, Scotland—simulates inertia utilizing energy electronics. And in an revolutionary twist, the battery web site may present short-circuit present in response to a fault, similar to typical energy turbines.
4 extra of those battery websites are below development in Scotland.
How Do Grid-Forming Inverters Work?
The batteries can ship these stabilizing providers due to their superior grid-forming inverters that convert direct present from lithium batteries into alternating present for the grid, and vice versa when the batteries are charging. Quite than ‘following’ the grid’s frequency and voltage the way in which almost all different grid-scale inverters do, grid-forming inverters march to their very own drum, and might generally act quicker than typical turbines.
“These grid-forming inverters that we’re putting in in Scotland—no one is doing that,” says Julian Lesliechief engineer and strategic vitality planning director for the Nationwide Vitality System Operator (NESO), primarily based in Warwick, England. Andy Hokean professional in grid-forming know-how and principal engineer on the U.S. Nationwide Renewable Vitality Lab, says Scotland’s additions undoubtedly push the envelope. “They’re tremendous thrilling tasks,” says Hoke.
Can the UK Function With out Gasoline Crops?
NESO is counting on grid-forming batteries to assist obtain an bold objective that it set for 2025: to point out that the UK can dwell with out its dextrous, stability-boosting gas-fired vegetation. The U.Okay. shut down its final coal-fired energy plant final 12 months, and by the tip of this 12 months NESO plans to display that it may additionally function with out gasoline vegetation.
“By the tip of the 12 months we’ll have a few hours with zero carbon operation, which goes to be wonderful,” says Leslie. It might be the world’s largest demonstration of fossil-free grid operation.
That is no ‘eco ego’ stunt. Elevated stability from energy electronics means extra photo voltaic and wind turbines can connect with the grid, and minimizes how typically NESO should curtail their era. London-based Zenobethe grid battery operator behind three of the brand new Scottish battery websites, estimates that Blackhillock alone will save customers £309 million (US $418 million) over 15 years.
Scotland is floor zero for the U.Okay.’s grid decarbonization problem. It has already closed not solely its coal vegetation, but additionally its gasoline vegetation. Its one remaining nuclear plant, Torness, will shut down by 2030. With Torness’s closing, the one synchronous turbines left in Scotland shall be its few remaining small hydropower vegetation—machines which have for therefore lengthy maintained the soundness of the grid with the mechanical velocity of their rotors. The wind- and solar-power installations the nation is betting on for its vitality future have grid-following inverters that contribute little to grid stability.
So options are wanted. Operators worldwide have been reinforcing their grids by putting in synchronous condensers—standalone synchronous turbines whose rotors are stored spinning utilizing grid energy. Saved kinetic vitality is then obtainable when the grid stumbles, very similar to a standard energy plant. The Baltic states ordered a raft of those devoted stabilizers forward of their latest shift from syncing with Russia’s grid to Europe’s.
NESO, nevertheless, is taking a special tack in its preparation for zero-carbon operation. As an alternative of merely specifying synchronous condensers, NESO recognized the place it wanted extra stability and invited builders to pitch tech options. Grid-forming batteries scored large in NESO’s 2022 tender. The £323-million ($427-million) bundle of successful bids included Scotland’s superior grid-scale batteries together with 5 synchronous condensers.
Brief-Circuit Present Innovation
What’s most revolutionary in regards to the grid-forming batteries is that NESO mandated that they supply short-circuit present, similar to synchronous turbines do. When falling bushes and different mishaps join a transmission line to the bottom, short-circuiting the grid, energy vegetation’ synchronous turbines launch a surge of present that helps prop up voltage. The blast of present can also be an necessary sign that triggers grid-protecting relays to open and isolate the faulted transmission section in a fraction of a second.
Mimicking that habits is tough for energy electronics. A grid-forming inverter sustains its personal voltage and frequency by delivering no matter present is required. When voltage drops, the controller instantly permits extra present by the inverter’s transistors. To date so good. However inverters can rapidly hit a wall. Excessive currents are like kryptonite for energy electronics, producing warmth that may rapidly fry their transistors. Because of this, inverters often function at solely 10 to twenty p.c above their present score, whereas currents from a synchronous generator can improve 700 p.c throughout a fault.
The only solution to improve present capability is so as to add extra transistors, however that’s expensive for the insulated-gate bipolar transistors utilized in transmission-level converters. German inverter producer SMA Photo voltaic Know-howwhich provided Blackhillock’s inverter, discovered a less expensive solution to meet the necessity, benefiting from the brevity of short-circuit present.
They programmed Blackhillock’s inverter to hit 250 p.c above nominal present to ship the 140 millisecond pulse that NESO requires, says Aaron Gerdemanna enterprise growth supervisor for SMA. After that, the system will again down, permitting the circuits to chill.
Can Energy Electronics Stabilize the Grid?
Zenobē’s international director of community infrastructure, Semih Oztrevespredicts that grid-forming batteries will finally nook the soundness market due to their inherent multi-functionality. Whereas synchronous condensers principally sit idle, ready for a uncommon grid fault, Zenobē’s superior batteries earn each day income by doing what most different storage websites do. For instance, they arbitrage vitality, absorbing energy when it’s low-cost and promoting when provides get tight.
However the short-circuit chops of grid-forming batteries haven’t but confronted a real-life check. Till then, doubts linger about whether or not transmission relays will reply appropriately to the inverters’ digitally-defined surge of present. In a report final 12 months for Australian grid operator Transgridone professional suggested towards over-reliance on grid-forming inverters for short-circuit present, saying that it could carry “excessive to very excessive threat.” The utility later introduced 10 synchronous condensers and 5 grid-forming batteries to bolster its grid.
So for now, with the stakes excessive, maintaining a couple of of the pricier synchronous condensers within the combine most likely is smart, says Hoke. “It won’t be the cost-optimal resolution, however it might be the smart resolution,” he says.
