PI (Physik Instrumente), a world chief in precision movement management, nanopositioning and piezo know-how options, declares the discharge of the V-141 linear motor stage household, essentially the most compact and cost-effective addition to its rising lineup of high-performance direct-drive linear phases. Engineered by PI USA’s improvement staff and manufactured in Hopkinton, MA, the V-141 direct-drive stage provides superior capabilities for space-constrained, high-speed, and high-precision functions.

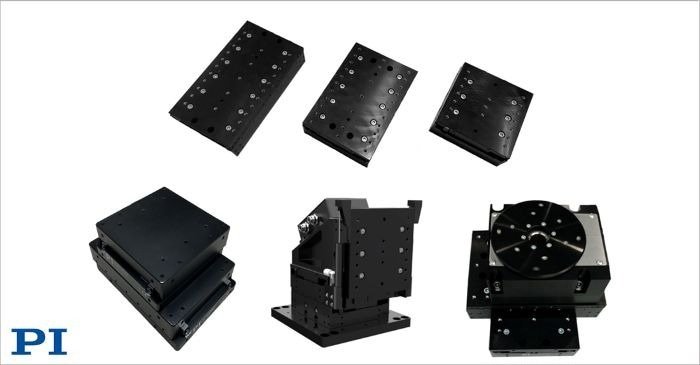

Picture Credit score: PI (Physik Instrumente) LP
The V-141 linear motor stage is at present out there in three journey ranges — 40 mm, 60 mm, and 100 mm — and options spectacular efficiency specs, together with:
Bidirectional repeatability of 0.12 µm
Straightness to 2 µm
Most velocity of 1.1 m/sec
With a footprint of simply 80×80 mm for the 40 mm model, the V-141 is good for compact integration in OEM methods, lab automation, microscopy, semiconductor, and photonics functions the place house is proscribed however precision can’t be compromised.
Engineered with direct-drive linear motor know-how, the V-141 eliminates the necessity for mechanical transmissions comparable to gears and screw drives, decreasing upkeep and enabling easy, wear-free movement with zero backlash.
“Efficiency, precision, price effectiveness and compactness had been the driving elements behind the V-141 stage design,” mentioned Matt Reck, president at PI USA. “It’s a scalable platform that meets the rising calls for of business and scientific customers on the lookout for dependable, high-precision linear movement in tight areas.”
XY and XYZ configurations, Counterbalance for Vertical Use
Moreover, the V-141 helps XY and XYZ configurations, with an non-compulsory built-in counterbalance on the Z-axis, making it a flexible resolution for advanced multi-axis movement methods.
Movement Controllers allow Very Excessive Dynamics
Operated with PI’s EtherCat-based movement controllers, that includes superior algorithms to reinforce dynamics whereas decreasing warmth technology, the phases mix very easy movement with speedy acceleration, excessive velocity and quick step & settle. A video exhibits the excessive dynamics efficiency of a V-141 XY stage meeting throughout a check setup.
The brand new V-141 precision linear stage is out there now.
Industries Served
Precision micro-assembly, biotechnology, precision automation, laser micro-processing, choose & place. photonics alignment and meeting, metrology, semiconductor check & measurement
