Researchers this month will start testing a high-voltage circuit breaker that may quench an arc and clear a fault with supercritical carbon dioxide fluid. The primary-of-its-kind gadget might change standard high-voltage breakers, which use the potent greenhouse gasoline sulfur hexafluoride, or SF6. Such gear is scattered extensively all through energy grids as a method to cease the circulation {of electrical} present in an emergency.
“SF6 is a implausible insulator, however it’s very dangerous for the surroundings—in all probability the worst greenhouse gasoline you may consider,” says Johan Enslina program director at U.S. Superior Analysis Tasks Company–Power (Harp-e), which funded the analysis. The greenhouse warming potential of SF6 is sort of 25,000 occasions as excessive as that of carbon dioxide, he notes.
If profitable, the invention, developed by researchers on the Georgia Institute of Know-how, might have a big effect on greenhouse gasoline emissions. A whole bunch of hundreds of circuit breakers dot energy grids globally, and almost the entire excessive voltage ones are insulated with SF6.
A high-voltage circuit breaker interrupter, like this one made by GE Vernova, stops present by mechanically creating a niche and an arc, after which blasting high-pressure gasoline by way of the hole. This halts the present by absorbing free electrons and quenching the arc because the dielectric power of the gasoline is elevated.GE Vernova
On high of that, SF6 byproducts are poisonous to people. After the gasoline quenches an arc, it could actually decompose into substances that may irritate the respiratory system. Individuals who work on SF6-insulated gear need to put on full respirators and protecting clothes. The European Union and California are phasing out using SF6 and different fluorinated gases (F-gases) in electrical gear, and several other different regulators are following swimsuit.
In response, researchers globally are racing to develop alternate options. During the last 5 years, ARPA-E has funded 15 completely different early-stage circuit breaker initiatives. And GE Vernova has developed merchandise for the European market that use a gasoline combination that features an F-gas, however at a fraction of the focus of standard SF6 breakers.
Reinventing Circuit Breakers With Supercritical CO2
The job of a grid-scale circuit breaker is to interrupt the circulation {of electrical} present when one thing goes fallacious, resembling a fault attributable to a lightning strike. These units are positioned all through substations, energy technology vegetation, transmission and distribution networks, and industrial amenities the place gear operates in tens to a whole lot of kilovolts.
Not like house circuit breakers, which may isolate a fault with a small air hole, grid-scale breakers want one thing extra substantial. Most high-voltage breakers depend on a mechanical interrupter housed in an enclosure containing SF6, which is a non-conductive insulating gasoline. When a fault happens, the gadget breaks the circuit by mechanically creating a niche and an arc, after which blasts the high-pressure gasoline by way of the hole, absorbing free electrons and quenching the arc because the dielectric power of the gasoline is elevated.
In Georgia Tech’s design, supercritical carbon dioxide quenches the arc. The fluid is created by placing CO2 beneath very excessive stress and temperature, turning it right into a substance that’s someplace between a gasoline and a liquid. As a result of supercritical CO2 is kind of dense, it could actually quench an arc and keep away from reignition of a brand new arc by decreasing the momentum of electrons—or not less than that’s the speculation.
Led by Lukas Graberhead of Georgia Tech’s plasma and dielectrics lab, the analysis group will run its 72-kV prototype AC breaker by way of an artificial take a look at circuit on the College of Wisconsin-Milwaukee starting in late April. They group can also be constructing a 245-kV model.
Using supercritical CO2 isn’t new, however designing a circuit breaker round it’s. The problem was to construct the breaker with parts that may stand up to the excessive stress wanted to maintain supercritical CO2, says Graber.
The staff turned to the petroleum trade to seek out the components, and located all however one: the bushing. This significant part serves as a feed-through to hold present by way of gear enclosures. However a bushing that may stand up to 120 atmospheres of stress didn’t exist. So Georgia Tech made its personal utilizing mineral-filled epoxy resins, copper conductors, metal pipes, and clean flanges.
“They’d to return to the basics of the bushing design to make the entire breaker work,” says Enslin. “That’s the place they’re making the largest contribution, in my eyes.” The compact design of Georgia Tech’s breaker may even permit it to slot in tighter areas with out sacrificing energy density, he says.
Changing a substation’s present circuit breakers with this design would require some changes, together with the addition of a warmth pump within the neighborhood for thermal administration of the breaker.
If the assessments on the artificial circuit go effectively, Graber plans to run the breaker by way of a battery of real-world simulations at KEMA Laboratories‘ Chalfont, Penn. location—a gold normal certification facility.

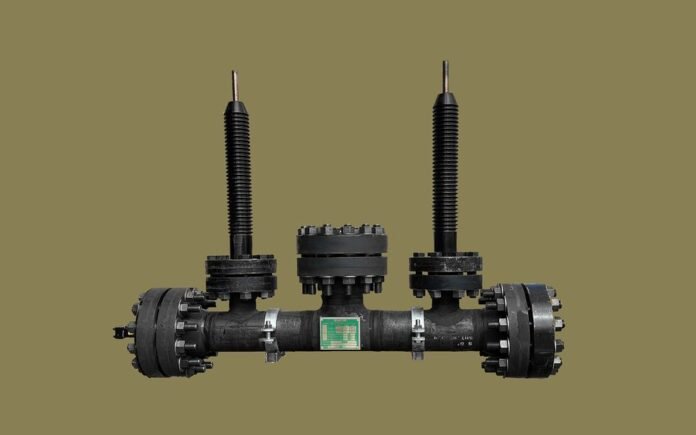

The Georgia Tech staff constructed its circuit breaker with components that may stand up to the very excessive pressures of supercritical CO2.Alfonso Jose Cruz
GE Vernova Markets SF6-alternative Circuit Breaker
If Georgia Tech’s circuit breaker makes it to the market, it must compete with GE Vernova, which had a 20-year head begin on growing SF6-free circuit breakers. In 2018, the corporate put in its first SF6-free gas-insulated substation in Europe, which included a 145 kV-class AC circuit breaker that’s insulated with a gasoline combination it calls g3. It’s composed of CO2, oxygen and a small quantity of C4F7N, or heptafluoroisobutyronitrile.
This fluorinated greenhouse gasoline isn’t good for the surroundings both. Nevertheless it contains lower than 5 % of the gasoline combination, so it lowers the greenhouse warming potential by as much as 99 % in contrast with SF6. That makes the warming potential nonetheless far larger than CO2 and methane, however it’s a begin.
“One of many causes we’re utilizing this know-how is as a result of we are able to make an SF6-free circuit breaker that may really bolt onto the precise basis of our equal SF6 breaker,” says Todd Irwina high-voltage circuit breaker senior product specialist at GE Vernova. It’s a drop-in alternative that may “slide proper right into a substation,” he says. Staff should nonetheless put on full protecting gear once they preserve or repair the machine like they do for SF6 gear, Irwin says. The corporate additionally makes a specific kind of breaker referred to as a dwell tank circuit breakerwithout the fluorinated part, he says.
All of those approaches, together with Georgia Tech’s supercritical CO2, rely upon mechanical motion to open and shut the circuit. This takes up valuable time within the occasion of a fault. That’s impressed many researchers to show to semiconductors, which may do the switching so much sooner, and don’t want a gasoline to show off the present.
“With mechanical, it could actually take as much as 4 or 5 cycles to clear the fault and that’s a lot vitality that it’s a must to take up,” says Enslin at ARPA-E. A semiconductor can doubtlessly do it in a millisecond or much less, he says. However industrial improvement of those stable state circuit breakers continues to be in early phases, and is concentrated on medium voltages. “It should take a while to get them to the required excessive voltages,” Enslin says.
The work could also be area of interest, however the impression could possibly be excessive. About 1 % of SF6 leaks from electrical gear. In 2018, that translated to 9,040 tons (8,200 tonnes) of SF6 emitted globally, accounting for about 1 % of the worldwide warming worth that 12 months.
