Apple has modified its MacBook connection customary from Thunderbolt 4 to Thunderbolt 5, however some earlier MacBook Air fashions had their ports listed as “Thunderbolt / USB 4” and “Thunderbolt 4 and USB 4” on its Professional and Max fashions.
What does all this imply? What’s the distinction between Thunderbolt 5, Thunderbolt 3 and Thunderbolt 3? After which what’s USB 4?
We thought that USB and Thunderbolt couldn’t get any extra complicated with many alternative speeds (from 5Gbps to 120Gbps) and features potential utilizing the identical “Kind-C” connection.
From an Apple person’s standpoint, there isn’t an excellent deal in Thunderbolt 4 that was new or completely different from Thunderbolt 3, with which it’s backwards suitable. The large adjustments have arrived with Thunderbolt 5.

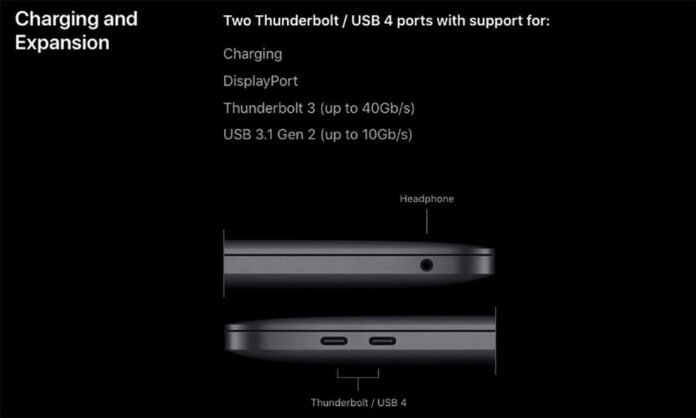

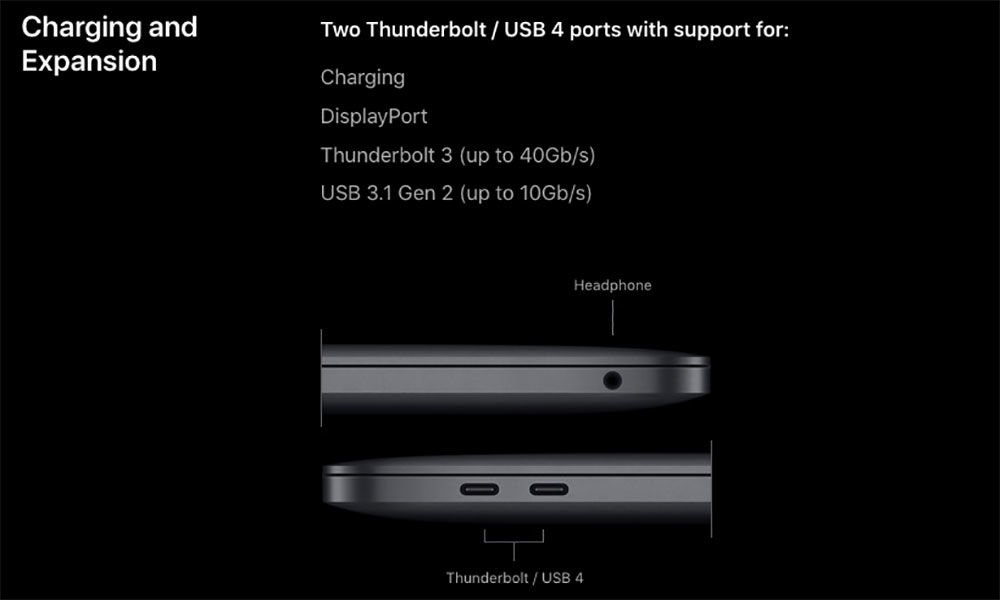

Certainly, in its M1 and M2 MacBooks tech specs, so as to add to the confusion Apple didn’t even name it Thunderbolt 4, itemizing it as “Thunderbolt / USB 4” together with Thunderbolt 3. For the superior M1 Professional and M1 Max MacBook Professional fashions, Apple listed the ports as full Thunderbolt 4—it’s because the Professional/Max variations can assist a number of exterior screens, not like the restricted plain M1 or M2 MacBooks. With out the flexibility to connect with two exterior shows, it may’t be labelled as licensed Thunderbolt 4.
What’s the distinction between Thunderbolt 4 and Thunderbolt 5?
After a lot teasing in 2022 and a demo in October 2022, Intel formally introduced Thunderbolt 5 on September 12, 2023, and Apple began introducing it into its MacBook Professional, Mac Studio and a few Mac mini fashions from 2024.
Thunderbolt 5 is an actual step up from Thunderbolt 4—not like Thunderbolt 4’s minor (Mac) enhancements on Thunderbolt 3.
Bandwidth is doubled from 40Gbps to 80Gbps, and show connections go as quick as 120Gbps—so as much as 3 times extra bandwidth than earlier current connectivity options.
Thunderbolt 5 provides as much as 240W of charging energy downstream to the related Mac. Apple’s 16-inch MacBook Professional helps 140W PD 3.1 by means of its MagSafe 3 port and now by way of its Thunderbolt 5 ports; Thunderbolt 4 ports are rated PD 3.0 and restricted to 100W. Meaning the Thunderbolt 5 MacBooks can fast-charge by way of both the MagSafe 3 connection or Thunderbolt 5 ports (utilizing both 240W-rated Thunderbolt or USB-C cables).
Thunderbolt 5 additionally helps DisplayPort 2.1—in comparison with right now’s DisplayPort 1.4. DisplayPort 2.1 helps a max 10K decision (10240-×-4320 pixels at 60Hz) on a single show, in comparison with the 8K decision supported by DisplayPort 1.4. It additionally contains improved model of Show Stream Compression (DSC 1.2a) that improves bandwidth administration.
Thunderbolt 5 provides the flexibility to daisy-chain as much as 10 units because of the twin USB Kind-C ports. It might probably dynamically alter bandwidth, prioritizing one course over the opposite primarily based on utilization
Thunderbolt 5 is backward suitable with Thunderbolt 3, Thunderbolt 4, and USB4 units, so you possibly can improve with out having to exchange current peripherals.
What’s the distinction between USB4 and Thunderbolt 4?
Intel didn’t need there to be a complicated USB 4.1, 4.2, and so on, so it jammed the 4 proper subsequent to the USB. Apple ignores this and insists, in its Apple-like method, on calling it “USB 4”.
Each use the identical Kind-C connector, similar to Thunderbolt 3, too.
Thunderbolt 4 relies on the identical underlying protocol as USB4—the 2 are tightly related, with all Thunderbolt 4 units supporting USB4. If somebody has a USB4 laptop computer, they will use a TB4 gadget and the opposite method round.
In truth, Thunderbolt 4 is USB4 with all of the trimmings.
Not all USB4 units will probably be as highly effective because the totally licensed Thunderbolt 4, nonetheless.
Similar to Apple’s model of Thunderbolt 3, Thunderbolt 4 will at all times have a full 40Gbps bandwidth.
USB4, nonetheless, begins at 20Gbps however may attain Thunderbolt 4’s 40Gbps. Look out for USB 20 or USB 40 in product advertising and marketing.
A USB4 port can solely assist one show. Thunderbolt 4 can assist two 4K shows.
The benefit of USB4 is that it’ll imply that producers can launch extra highly effective hubs and docks that aren’t Thunderbolt, at a less expensive value.
Nevertheless, since Thunderbolt merchandise are licensed, it implies that they’re of the best customary. USB4 units don’t should be licensed and so finally we are going to see many USB4 units flooding the market with various levels of high quality, as we see with USB-C hubs right now.
What’s Thunderbolt hubbing?
Thunderbolt 4 is, in some methods, only a software program improve for Mac customers. You want not less than Apple’s Large Sur working system (macOS 11) to get its new hubbing performance.
Hubbing does away with the dangers of Thunderbolt gadget daisy-chaining.
You’ve at all times been capable of join a number of Thunderbolt units however in a probably lengthy chain, which meant that in the event you eliminated any certainly one of them (besides the final one within the chain) all of the others turned unusable till the chain was re-established.
Now, with Thunderbolt hubbing, you possibly can have as much as 4 Thunderbolt ports in a hub or dock—every a separate ”department” that may be disconnected with out affecting every other Thunderbolt units related within the different ports.
As much as six Thunderbolt 4 units may be well daisy-chained.
What’s the distinction between Thunderbolt 3 and Thunderbolt 4?
Thunderbolt 4 is simply considerably completely different for Home windows PCs, whose Thunderbolt 3 variations have been usually restricted in options—the place Apple at all times gave its customers the total Thunderbolt 3 function set.
Thunderbolt 3 on a Home windows laptop computer may lack the total 40Gbps bandwidth, or possibly not assist a number of shows or energy supply.
Poor PC customers, you’ve bought to really feel for them.
Thunderbolt 4 requires obligatory certification for all computer systems, which suggests Home windows customers lastly get all the good options Apple customers bought with Thunderbolt 3. So Thunderbolt 4 standardizes Thunderbolt 3 for all laptop customers.
It’s backwards suitable, however shopping for Thunderbolt 4 or 5 units may even future-proof your setup.
So in case your Mac has “simply” Thunderbolt 3, don’t fear. It’s simply that Home windows PCs can now be part of within the enjoyable with out limitations, the place up to now PC producers may declare theoretical specs however not ship the perfect they may by being merely “suitable” fairly than “licensed”.
It ought to be famous that the MacBooks with Apple’s personal M1 or M2 chips had a major limitation: they will’t run multiple exterior show natively. Nevertheless, there’s a workaround that enables M1 and M2 MacBooks to run multiple exterior show.
In truth, Thunderbolt 3 was required to assist just one exterior 4K monitor, whereas each Thunderbolt 4 laptop computer has to assist two 4K shows or one 8K show.
Thunderbolt 4 and 5 guarantee which you could wake a pc with the shake of a mouse or the faucet of a keyboard on Thunderbolt 4 or 5 docks. This wasn’t at all times the case with Thunderbolt 3. That is possibly why Apple isn’t particularly calling its Thunderbolt model 4, because of the M1/M2 show limitation.
TB4 and TB5 are additionally a extra data-safe know-how, as they requires Intel VT-d-based direct reminiscence entry (DMA) safety, also referred to as DMA remapping.
What else? Effectively, Thunderbolt 4 helps PCIe (peripheral part interconnect specific) at 64Gbps for sooner storage speeds than TB4’s 32Gbps and TB3’s 16Gbps. Among the early Thunderbolt 3 MacBooks had much less bandwidth obtainable on the right-hand-side Thunderbolt ports. Sooner PCIe is vital in the event you regularly switch very massive recordsdata between storage units.
Right here we’re speaking concerning the portion of complete Thunderbolt bandwidth allotted for PCI Specific information switch. With Thunderbolt 4 and 5, you’re assured to have all 4 lanes of PCI Specific obtainable—so PCIe can devour as much as 32 or 64Gbps of the entire 40Gbps/80Gbps Thunderbolt bandwidth. With Thunderbolt 3, relying in your laptop computer producer and mannequin, some implementations provide solely 16Gbps of PCIe bandwidth.
Different benefits of Thunderbolt 4 and 5 embody that hubs and docks can now have greater than two Thunderbolt ports (as much as 4) and that TB4 and TB5 cables may be as much as 2 meters lengthy and nonetheless deal with the 40Gbps bandwidth. Beforehand, passive TB3 cables needed to be 0.7m or beneath to deal with full bandwidth.
Thunderbolt 4 and (most) USB4 assist the newest USB PD 3.1 customary that enables for optimum charging of 240W in comparison with USB PD 3.0 and Thunderbolt 3’s 100W. Keep in mind that you want the proper sort of cable for the upper charging charges: learn our roundup of the greatest Thunderbolt 4 cables.
Thunderbolt docks
We’ve examined the perfect Thunderbolt 4 hubs and docking stations.
The TB4 and TB5 hubs typically function 4 Thunderbolt ports (one upstream to connect with the pc, and three downstream to exterior units). Docks generally swap out one or two downstream Thunderbolt ports for extra conventional show connectors (equivalent to HDMI and DisplayPort).
You may study extra about essentially the most totally featured hub we’ve examined in our Caldigit Thunderbolt 5 Ingredient 5 Hub evaluation. This hub options 4 Thunderbolt 5, two 10Gbps USB-C and three 10Gbps USB-A ports.
Foundry
The CalDigit Thunderbolt 4 Ingredient hub options 4 Thunderbolt 4 and 4 10Gbps USB-A ports.
Intel
Who owns Thunderbolt? Intel or Apple?
Apple and Intel have collaborated on Thunderbolt know-how since 2010, releasing its first Thunderbolt MacBook in 2011.
Apple even registered the trademark “Thunderbolt” though it handed this on to Intel, in return for “unrestricted use of the know-how”. However Intel is the official proprietor of the Thunderbolt know-how.
Earlier than this settlement, the know-how was recognized by Intel as “Mild Peak”.
