With regards to smartphone cameras, greater is best. Bigger picture sensors and lenses have extra mild to work with, to allow them to resolve extra particulars. That’s particularly essential, as a result of the filters that create colour pictures additionally block about 70 p.c of incoming mild.
These colour filters—laid out as a grid of pink, inexperienced, and blue over the picture sensor’s pixels—have been round for many years. However new approaches promise to take advantage of the physics of sunshine to create colour pictures with out blocking out so many photons. Three such paths to sharper pictures had been offered on the 2023 IEEE Worldwide Electron System Assembly (IEDM). Now, these strategies are starting to emerge from the laboratory stage.
Samsung, as an example, will present the entrance digital camera for China-based Xiaomi’s new cellphone that makes use of Samsung’s nano-prism expertise for improved low-light efficiency. The expertise doesn’t exchange colour filters; it makes use of diffraction to gather extra mild in every color-specific pixel. This enhances mild sensitivity by 25 p.cin response to the corporate.
In the meantime, two new startups have developed methods to seize colour pictures with out filters. An Imec spinoff known as Eyeo this month introduced that it has raised €15 million in seed funding. And PxE Holographic Imaging showcased expertise that mixes depth sensing and colour imaging, in January at this 12 months’s Client Electronics Present (CES).
Each PxE and Eyeo are appropriate with CMOS sensors, the most typical digital picture sensor utilized in cameras right now. “The CMOS sensor is a really mature and robust platform to construct upon. You might have it in each gadget right now,” says PxE’s founder and CEO Yoav Latzky. However “all people needs extra photons reaching their CMOS sensors.”
Eyeo’s Filter-Free Colour Digital camera
Eyeo goals to commercialize the analysis offered by Imec at IEDM in 2023 for functions in shopper electronics, safety, and extra. By eradicating the colour filter, the startup’s picture sensor is made thrice as delicate as conventional CMOS sensors. “It’s as if we’re lastly opening the eyes of a picture sensor,” says Eyeo CEO See.

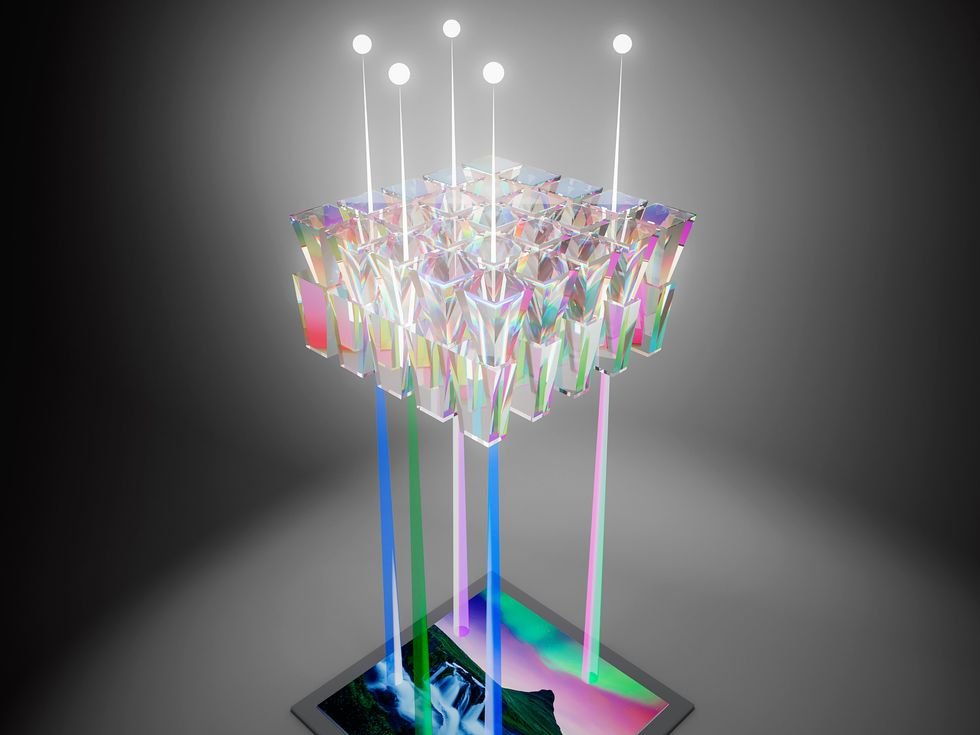

The colour splitters in Eyeo’s picture sensor information mild of various wavelengths to the suitable pixels.Eyeo
It really works by sending mild by means of vertical waveguides that break up mild primarily based on wavelength, then steer the photons to the suitable pixel. The waveguides act like a funnel, so these pixels might be shrunk right down to lower than 0.5 micrometers in width, about half the scale of a typical smartphone pixel. The expertise additionally higher matches the colour sensitivity of the human eye than right now’s filter-based imagers, in response to the Imec analysis.
The colour splitting tech is designed to be made with the present instruments and processes already utilized in CMOS foundries. The problem comes on the software program aspect. Eyeo is now working to make sure the sensor is appropriate with its potential clients’ techniques, in response to Hoet.
When it comes to functions, Hoet says the advantage of Eyeo’s smaller, extra delicate picture sensors is very clear for smartphones. Nonetheless, he expects the expertise will first be adopted for different makes use of, similar to safety techniques for low-light situations or augmented actuality units that require ultracompact sensors.
PxE Brings 3D to CMOS
The fundamental concept behind PxE’s method is analogous. Each corporations intention to mimic colour filters with out shedding photons and “someway get the colours in the appropriate place on the appropriate pixel” by bending mild waves, Bertlatzky summarizes.
On this model of the picture above, pink strains point out an object is nearer, whereas blue strains imply it’s farther away. PxE
PxE’s expertise makes use of a layer of diffractive materials it calls a “holocoder” to not solely create colour pictures but in addition to behave as a depth sensor (therefore the “holographic” a part of the corporate identify). When white mild passes by means of the holocoder, it creates an interference sample that’s recorded by the sensor. PxE’s algorithms then use that sample to reconstruct a digital 3D picture—a hologram. The interference sample additionally encodes details about the wavelength of sunshine, so colour (and infrared) pictures can concurrently be reconstructed.
Berlatzky says PxE’s {hardware} is “much less unique” than colour splitters and different approaches that use specifically engineered metasurfaces. A lot of its energy comes from the software program. “The premise of the algorithm is the physics of sunshine,” Berlatzky explains. “You’ll be able to consider it as if we’re working it in reverse, from the CMOS sensor again out to the world, and reconstructing what the digital camera is definitely seeing, when it comes to depth and picture.”
Like Eyeo, PxE’s picture sensor could possibly be utilized in a spread of functions—significantly in people who have already got separate depth and picture sensors, similar to vehicles and smartphones.
